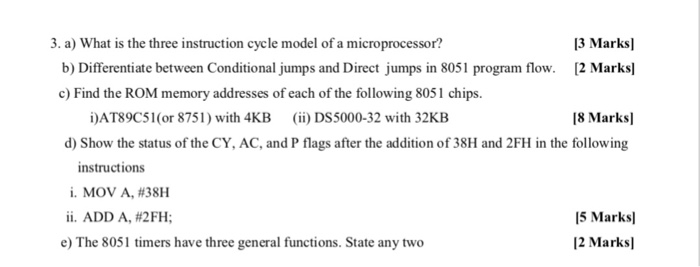

13 Marksl b) Differentiate between Conditionajumps and Direct jumps in 8051 program flow. 2 Marks 3. a) What is the three instruction cycle model of a microprocessor? c) Find the ROM memory addresses of each of the following 8051 chips. İJAT89C5l(or 8751) with 4KB (ii) DS5000-32 with 32KB 18 Marksl d) Show the status of the CY, AC, and P flags after the addition of 38H and 2FH in the following instructions i. MOV A, #38H ii. ADD A, #2 FH; 5 Marks 12 Marksl e) The 8051 timers have three general functions. State any two13 Marksl
