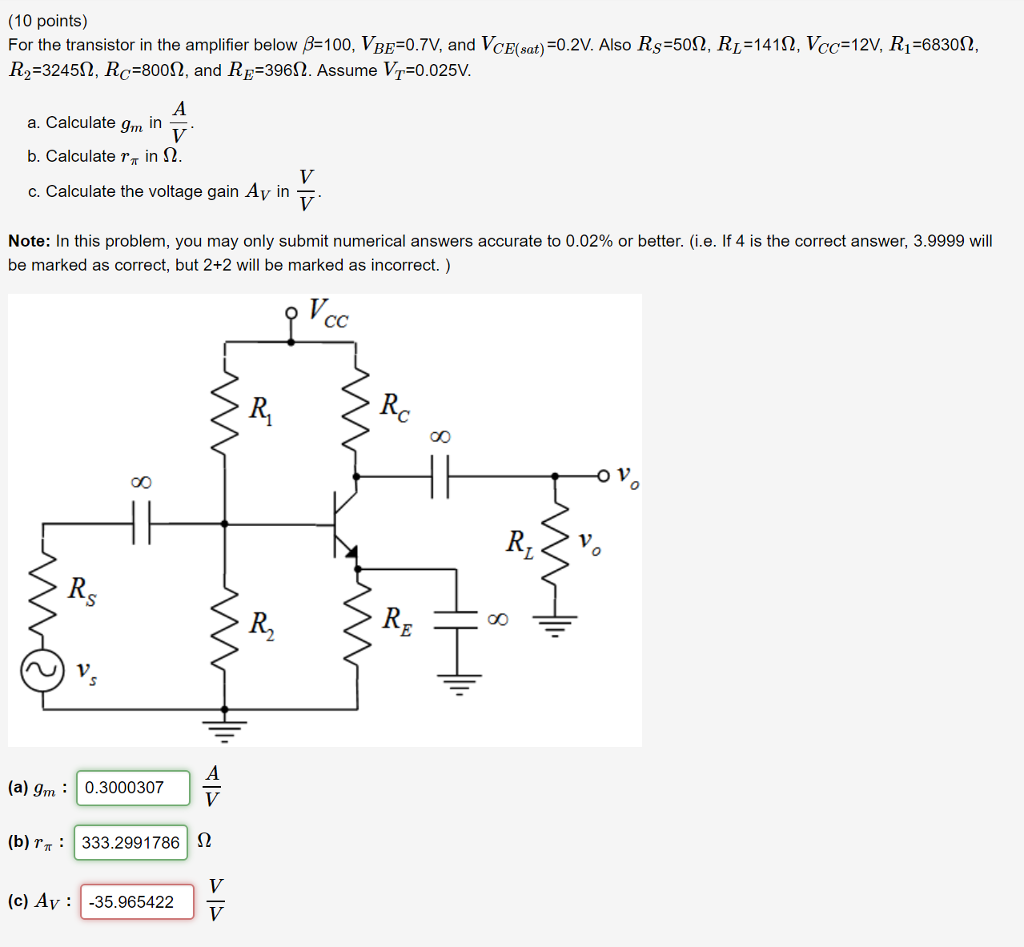

10 points) For the transistor in the amplifier below 100, VBE:0 7V, and VCE(sat)=0.2V. Also Rs=50Ω, RL=141 Ω, Vc=121, Ri-6830Ω, R,-3245Q, Rc-80012, and RR-3960. Assume VT-0.025V a. Calculate gm in 7 b. calculate in Ω. c. Calculate the voltage gain Av in Note: In this problem, you may only submit numerical answers accurate to 0.02% or better. (ielf4 is the correct answer, 39999 will be marked as correct, but 2+2 will be marked as incorrect.) 4X) O V R2 (a) Im:0.3000307 (b)333.2991786 2 (c) Av: -35.965422
