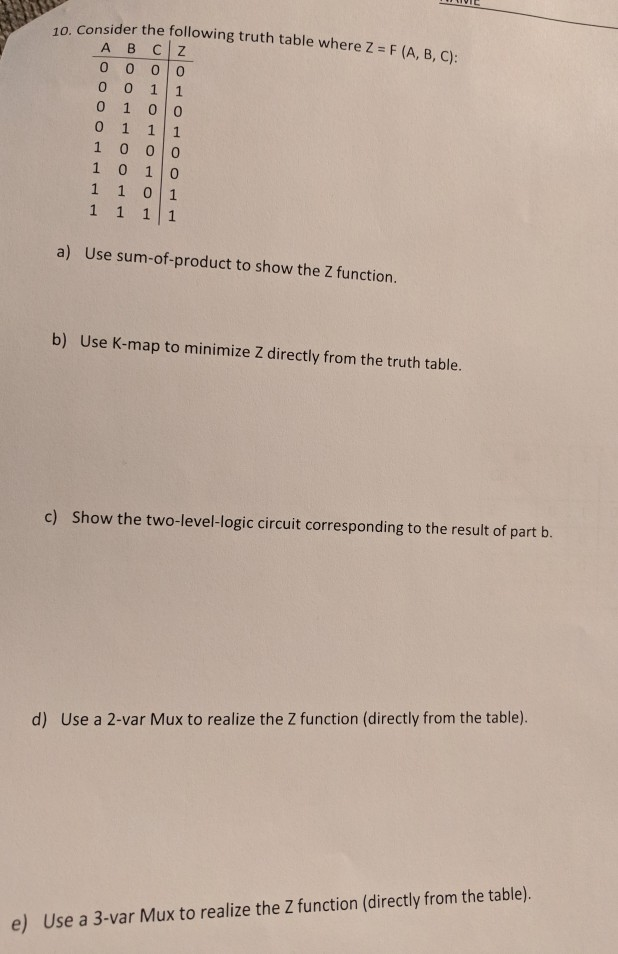

10. Consider the following truth table where Z - F (A, B, C): ABC|Z o 1 0 0 1 0 1 0 1 1 0 1 a) Use sum-of-product to show the Z function b) Use K-map to minimize Z directly from the truth table. c) Show the two-level-logic circuit corresponding to the result of part b. d) Use a 2-var Mux to realize the Z function (directly from the table). e) Use a 3-var Mux to realize the Z function (directly from the table)
