Question 9Please read carefully

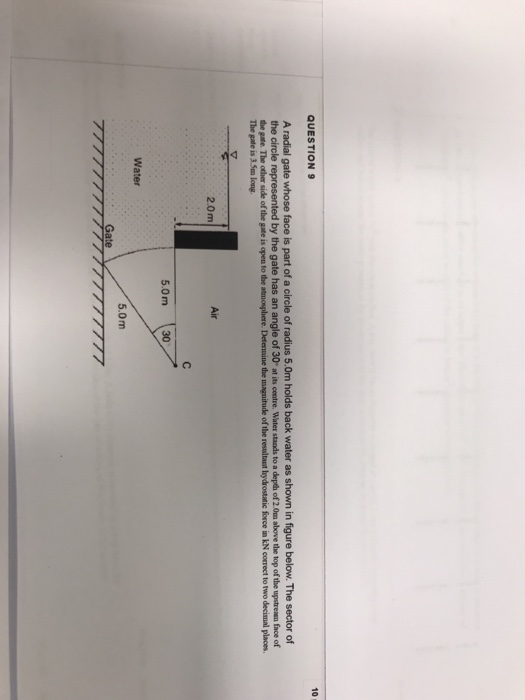

10 1 QUESTION9 A radial gate whose face is part of a circle of radius 5.0m holds back water as shown in figure below. The sector of the circle represented by the gate has an angle of 30 at its centre. Water stands to a depth of 2.0m above the top of the upstream face of the gate. The other side of the gate is open to the atmosphere. Deternmine the magnitude of the resultant hydrostatic force in kN correct to two decimal places. 2.0m Air 5.0m 30 Water 5.0m Gate10 1 QUESTION9 A
