Please answer all parts of the question.

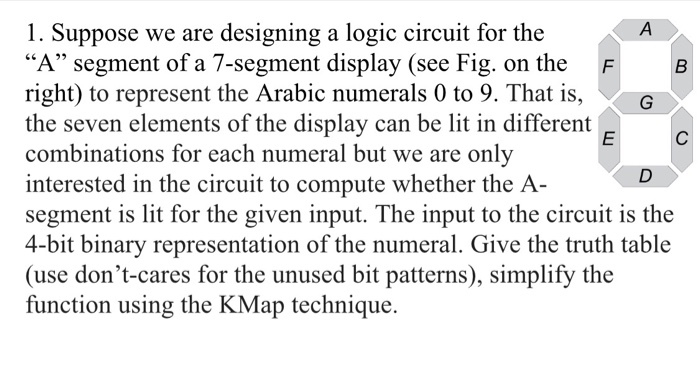

1. Suppose we are designing a logic circuit for the A segment of a 7-segment display (see Fig. on the F right) to represent the Arabic numerals 0 to 9. That is, G the seven elements of the display can be lit in different combinations for each numeral but we are only interested in the circuit to compute whether the A- segment is lit for the given input. The input to the circuit is the 4-bit binary representation of the numeral. Give the truth table (use dont-cares for the unused bit patterns), simplify the function using the KMap technique1.
