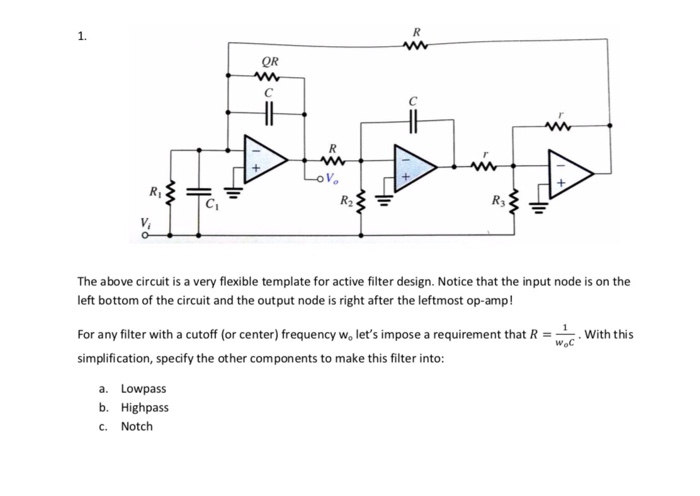

1. QR Ri Cr The above circuit is a very flexible template for active filter design. Notice that the input node is on the left bottom of the circuit and the output node is right after the leftmost op-amp! For any filter with a cutoff (or center) frequency wo lets impose a requirement that RWith this simplification, specify the other components to make this filter into: Woc a. Lowpass b. Highpass . Notch1. QR Ri Cr The above circuit is a very flexible template for active filter design. Notice that the input node is on the left
