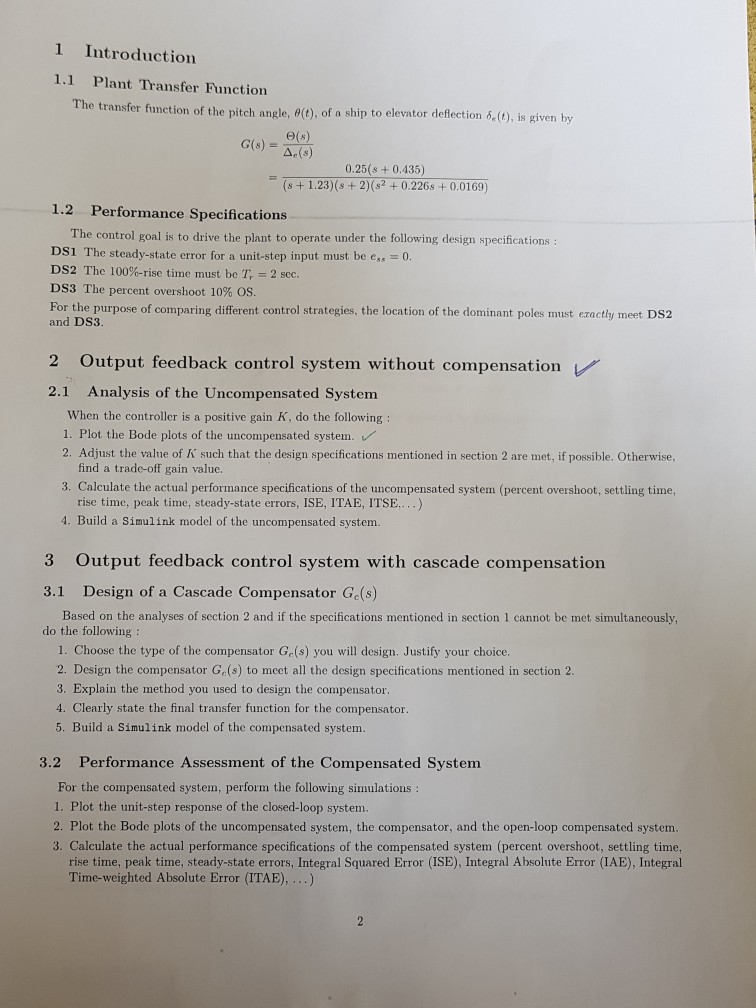

1 Introduction 1.1 Plant Transfer Function The transfer function of the pitch angle, (), of a ship to elevator deflection 6,(), is given by by G(s) (s) ?(s) 0.25(s +0.435) (s + 1.23)(s + 2)(s2 + 0.226s + 0.0169) 1.2 Performance Specifications The control goal is to drive the plant to operate under the following design specifications DSi The steady-state error for a unit-step input must be e,,-0. DS2 The 100%-rise time must be T, = 2 sec. DS3 The percent overshoot 10% OS For the purpose of comparing different control strategies, the location of the dominant
