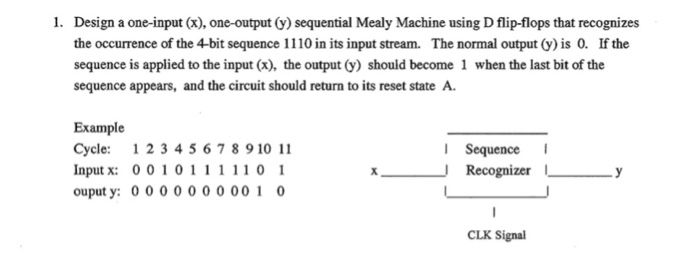

1. Design a one-input (x), one-output (sequential Mealy Machine using D flip-flops that recognizes the occurrence of the 4-bit sequence 1110 in its input stream. The normal output (y)is 0. If the sequence is applied to the input (x), the output (y) should become 1 when the last bit of the sequence appears, and the circuit should return to its reset state A Example Cycle: 1 2345 6 7 8 910 11 I Sequence x Recognizer ouput y: 0 000000001 CLK Signal1. Design a one-input (x), one-output (sequential Mealy Machine using D flip-flops that recognizes the
