(Solved) : 1 Design Counter Goes Sequence 6 5 3 7 Repeat Using D Flip Flops Jk Flip Flops Show State Q33141827 . . . .



I need help with all parts please

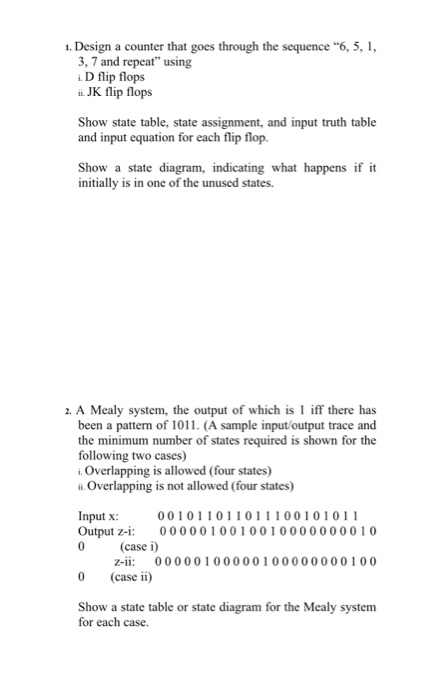

1. Design a counter that goes through the sequence 6, 5, 3, 7 and repeat using i D flip flops JK flip flops Show state table, state assignment, and input truth table and input equation for each flip flop. initially is in on ainditing what initially is in one of the unused states. Show a state diagram, indicating what happens if it 2. A Mealy system, the output of which is 1 iff there has been a pattern of 1011. (A sample input/output trace and the minimum number of states required is
