(Answered) : Three Identical Resistors Connected Battery Inductor Switch Shown Figure Values Circuit El Q28865974

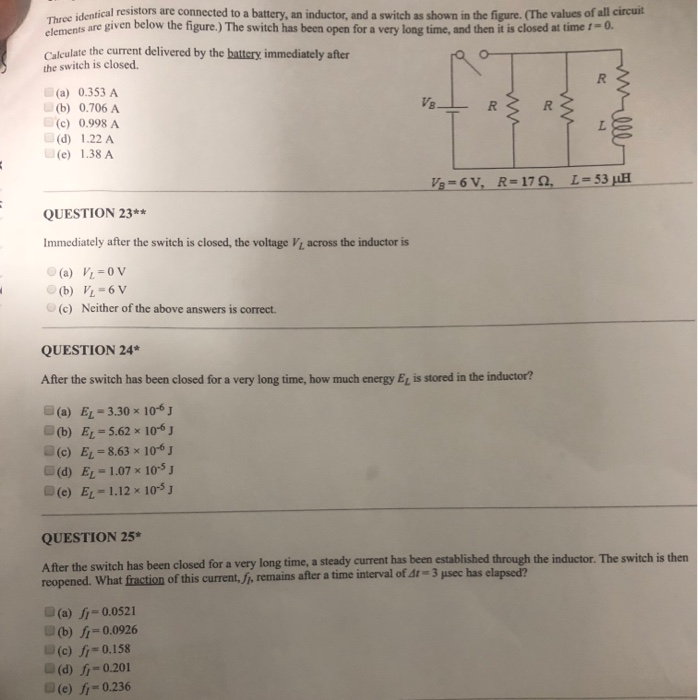

Three identical resistors are connected to a battery, an inductor, and a switch as shown in the figure. (The values of all circuit elements are given below the figure ) The switch has been open for a very long time, and then t is closed at time ,-a Calcalate the current delivered by the battery immediately after the switch is closed. (a) 0.353 A VB (b) 0.706 A (c) 0.998 A (d) 1.22 A (e) 1.38 A L-53 QUESTION 23** Immediately after the switch is closed, the voltage Vi, across the inductor is (c) Neither of the above
