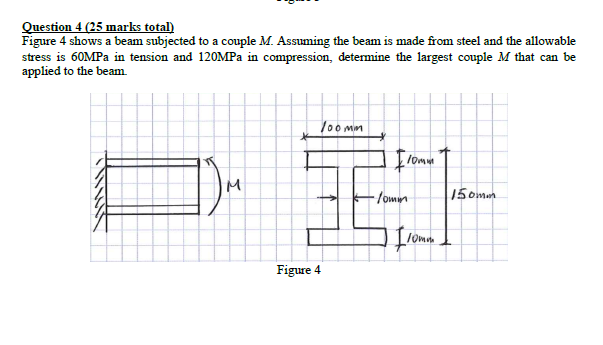

stion 4 (25 marks tot Figure 4 shows a beam subjected to a couple M. Assuming the beam is made from steel and the allowable stress is 60MPa in tension and 120MPa in compression, determine the largest couple M that can be applied to the beam. oimn Figure
