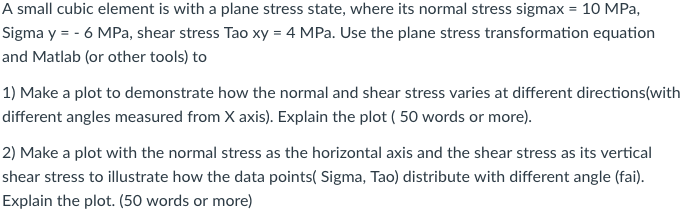

A small cubic element is with a plane stress state, where its normal stress sigmax 10 MPa, Sigma y 6 MPa, shear stress Tao xy 4 MPa. Use the plane stress transformation equation and Matlab (or other tools) to 1) Make a plot to demonstrate how the normal and shear stress varies at different directions(with different angles measured from X axis). Explain the plot (50 words or more) 2 Make a plot withthe normal stress as the horizontal axis and the shear stress as its vertical shear stress to illustrate how the data points( Sigma, Tao) distribute with different angle (fai Explain the plot. (50 words or more)
