(Answered) : Simply Supported Beam Subjected Two Point Loads 8 D Shown Figure Determine Maximum Deflect Q28686052

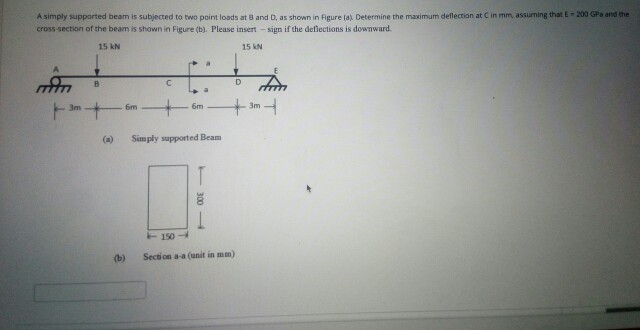

A simply supported beam is subjected to two point loads at 8 and D, as shown in Figure (a) Determine the maximum deflection at C in mm assuming that E - 200 (Ghe and the cross-section of the beam is shown in Figure (b). Please insert -sign if the deflections is downward 15 kN 15 kN Simply supported Beam (b) Section a-a (unit in mm)

A simply supported beam is subjected to two point loads at 8 and D, as shown in Figure (a) Determine the maximum deflection at C in mm assuming that E –
