(Answered) : Section Shear Force Bending Moments Draw Bending Moment Bm Shear Force Sf Diagrams Followi Q28325487

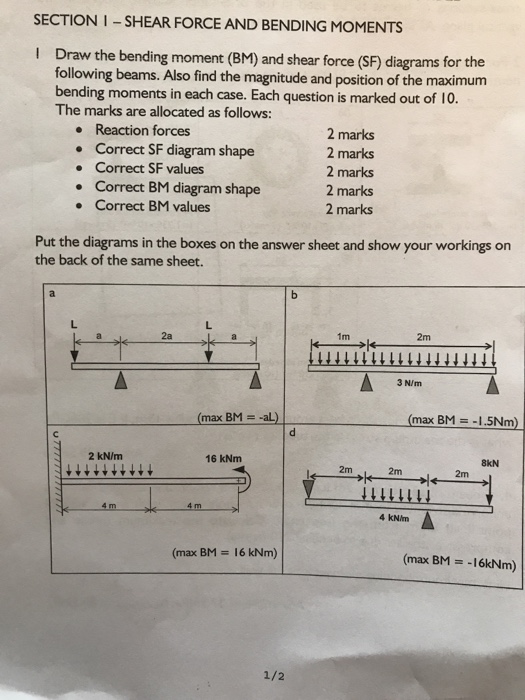

SECTION I SHEAR FORCE AND BENDING MOMENTS I Draw the bending moment (BM) and shear force (SF) diagrams for the following beams. Also find the magnitude and position of the maximum bending moments in each case. Each question is marked out of 10. The marks are allocated as follows: Reaction forces Correct SF diagram shape Correct SF values Correct BM diagram shape Correct BM values 2 marks 2 marks 2 marks 2 marks 2 marks . Put the diagrams in the boxes on the answer sheet and show your workings on the back of the same sheet. 1m mM 3 N/m (max BM aL) (max BM-1.5Nm) 2 kN/m 16 kNm 8kN 2m 2m 4 KN/m (max BM 16 kNm) (max BM -16kNm) 2/2SECTION
