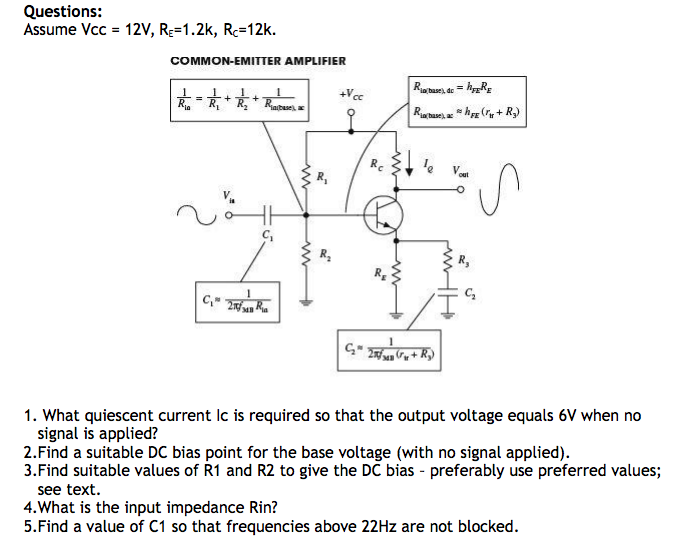

Questions: Assume Vcc-12V, RE-1.2k, Rc-12k. COMMON-EMITTER AMPLIFIER C2 1. What quiescent current lc is required so that the output voltage equals 6V when no signal is applied? 2.Find a suitable DC bias point for the base voltage (with no signal applied) 3.Find suitable values of R1 and R2 to give the DC bias preferably use preferred values; see text. 4.What is the input impedance Rin? 5.Find a value of C1 so that frequencies above 22Hz are not blocked

Would be really greatful if there are some explanations.Thanks!

Questions: Assume Vcc-12V, RE-1.2k, Rc-12k. COMMON-EMITTER AMPLIFIER C2 1. What quiescent
