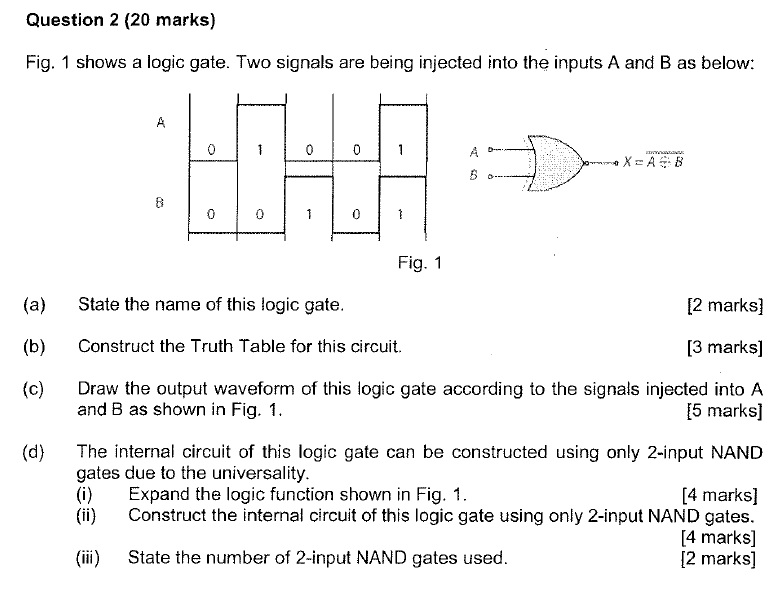

Question 2 (20 marks) Fig. 1 shows a logic gate. Two signals are being injected into the inputs A and B as below: 8 0 Fig. 1 (a) (b) (c) State the name of this logic gate [2 marks] [3 marks] Draw the output waveform of this logic gate according to the signals injected into A Construct the Truth Table for this circuit. [5 marks] (d)The internal circuit of this logic gate can be constructed using only 2-input NAND [4 marks] [4 marks] and B as shown in Fig. 1 gates due to the universality (i)Expand the logic function shown in Fig. 1. (ii) Construct the internal circuit of this logic gate using only 2-input NAND gates (ii) State the number of 2-input NAND gates used [2 marks]
