(Answered) : Puestion 1 R1 C1 L1 M 01h V2 100 120vrms 60hz Vi 125uf 12v Circuit Shown Figure 1 Calculat Q28565303

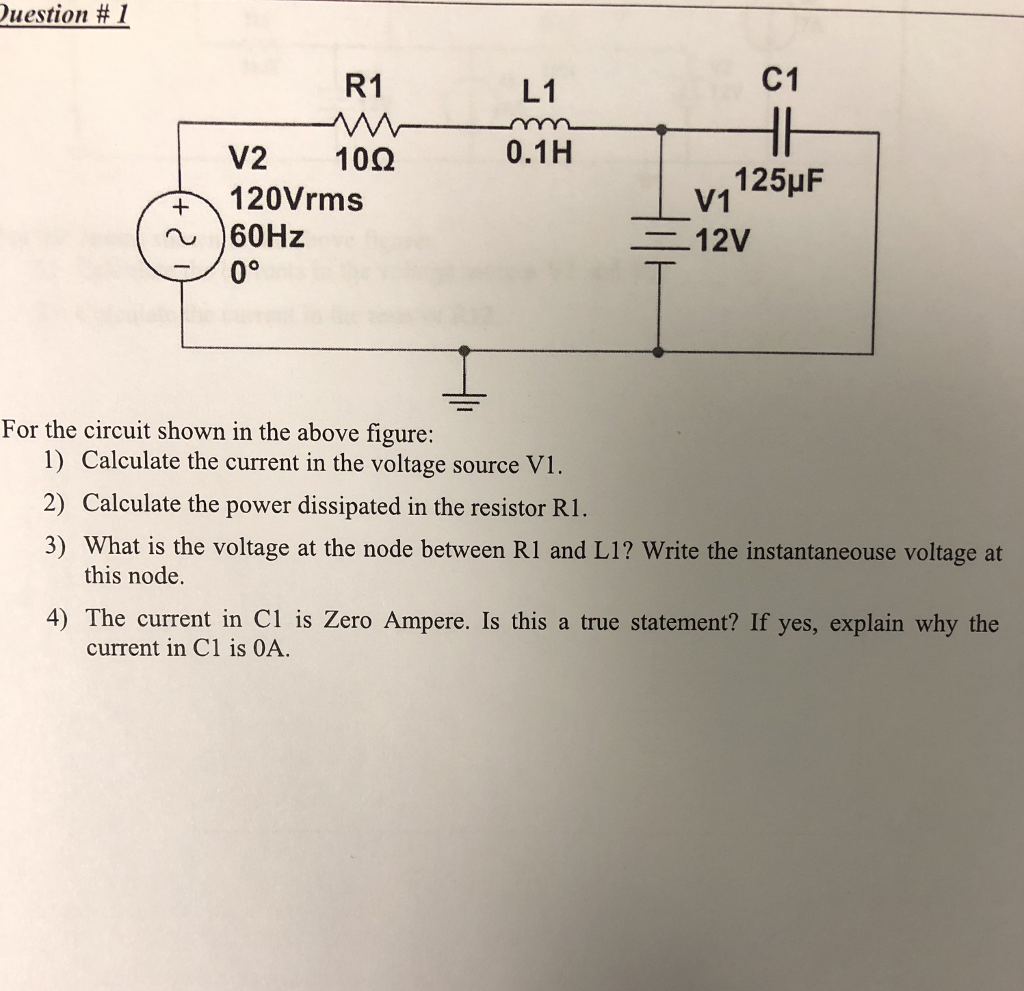

Puestion # 1 R1 C1 L1 m 0.1H V2 100 120Vrms 60Hz vi 125uF = 12V For the circuit shown in the above figure: 1) Calculate the current in the voltage source VI. 2) Calculate the power dissipated in the resistor R1. 3) What is the voltage at the node between R1 and L1? Write the instantaneouse voltage at this node. 4) The current in Ci is Zero Ampere. Is this a true statement? If yes, explain why the current in C1 is OA.

Puestion # 1 R1 C1 L1 m 0.1H V2 100 120Vrms 60Hz vi
