(Answered) : Problem 7 10 V Source Used Power 100 Load Clearly Load Match Source Resistance Maximum Pow Q28735555

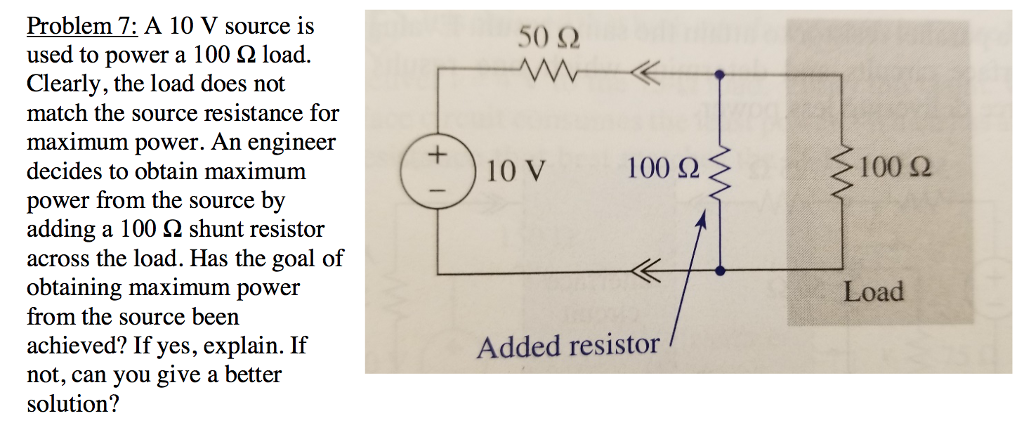

Problem 7: A 10 V source is used to power a 100 ? load. Clearly, the load does not match the source resistance for maximum power. An engineer decides to obtain maximum power from the source b adding a 100 2 shunt resistor across the load. Has the goal of obtaining maximum power from the source been achieved? If yes, explain. If not, can you give a better solution? 5() ? 10 V 100 ? 100 ? Load Added resistor

Problem 7: A 10 V source is used to power a 100 ? load. Clearly, the load
