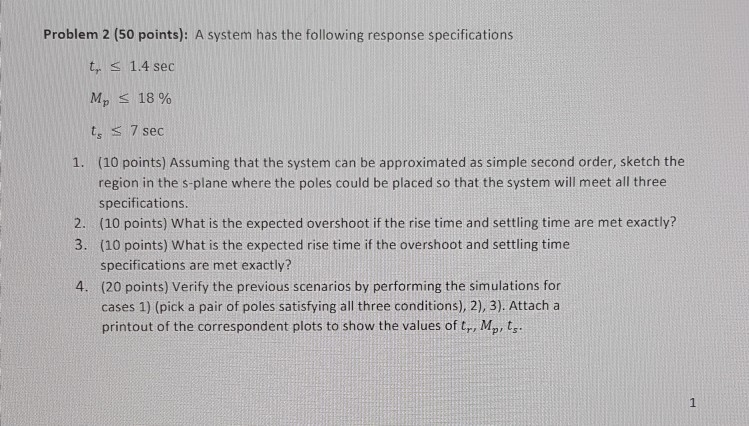

Problem 2 (50 points): A system has the following response specifications t, 1.4 sec 18 % ts S7 sec (10 points) Assuming that the system can be approximated as simple second order, sketch the region in the s-plane where the poles could be placed so that the system will meet all three specifications (10 points) What is the expected overshoot if the rise time and settling time are met exactly? (10 points) What is the expected rise time if the overshoot and settling time specifications are met exactly? (20 points) Verify the previous scenarios by performing the simulations for cases 1) (pick a pair of poles satisfying all three conditions), 2), 3) Attach a printout of the correspondent plots to show the values of tr, Mp ts 1. 2. 3. 4.
