(Answered) : Problem 1 Amplifier Based Npn Bjt Shown Fig 1 Bjt Parameters Vile 07v 150 Given Following Q28962534

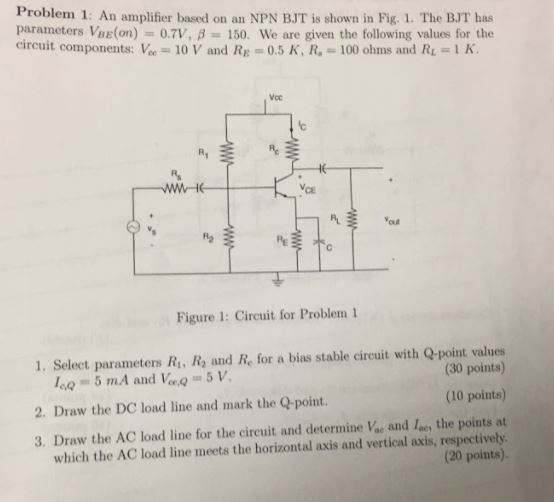

Problem 1: An amplifier based on an NPN BJT is shown in Fig. 1. The BJT has parameters Vile(on)-0.7V, ? 150. We are given the following values for the circuit components: Vie = 10 V and RE = 0.5 K. R.-100 ohms and R.-1 K. Voc ? Yout Figure 1: Circuit for Problem 1 1. Select parameters R, Ra and Re for a bias stable circuit with Q-point values (30 points) (10 points) 2. Draw the DC load line and mark the Q-point. 3. Draw the AC load line for the circuit and determine Voe and lae, the points at which the AC load line meets the horizontal axis and vertical axis, respectively (20 points).

Problem
