(Solved) : 15 Kg S Water Flowing Discharging Pipe U Section Shown Figure Flange 1 Pipe Diameter 5 Cm Q33346752 . . . .

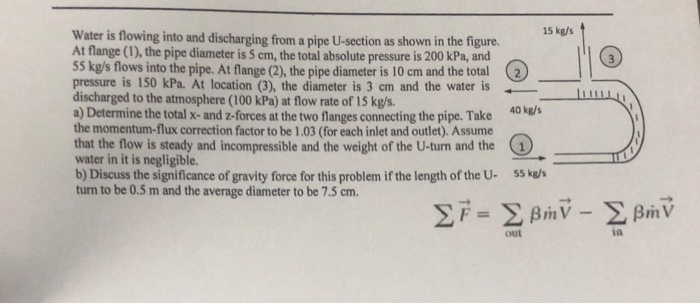

15 kg/s Water is flowing into and discharging from a pipe U-section as shown in the figure. At flange (1), the pipe diameter is 5 cm, the total absolute pressure is 200 kPa, and 55 kg/s flows into the pipe. At flange (2), the pipe diameter is 10 cm and the total (2 pressure is 150 kPa. At location (3), the diameter is 3 cm and the water is discharged to the atmosphere (100 kPa) at flow rate of 15 kg/s. a) Determine the total x- and z-forces at the two flanges comnecting the pipe. Take the momentum-flux
